Lock-out and Tag-out

There are a few ways to perform lock-out/tag-out in Calem Enterprise:

• Option 1: use "Safety measure" or "Step" in work order or PM Plan to define the lock-out/tag-out processes.
• Option 2: use a permit with type being "Lock-out/Tag-out". Define steps for lock-out/tag-out processes as in Option 1.

The custom screens below have been deprecated. They are not available.

• Define processes for electrical, mechanical and fluid. Calem Enterprise also provides an online form for one to work through the lock-out/tag-out processes.

The lock-out/tag-out form opens when the template is saved.

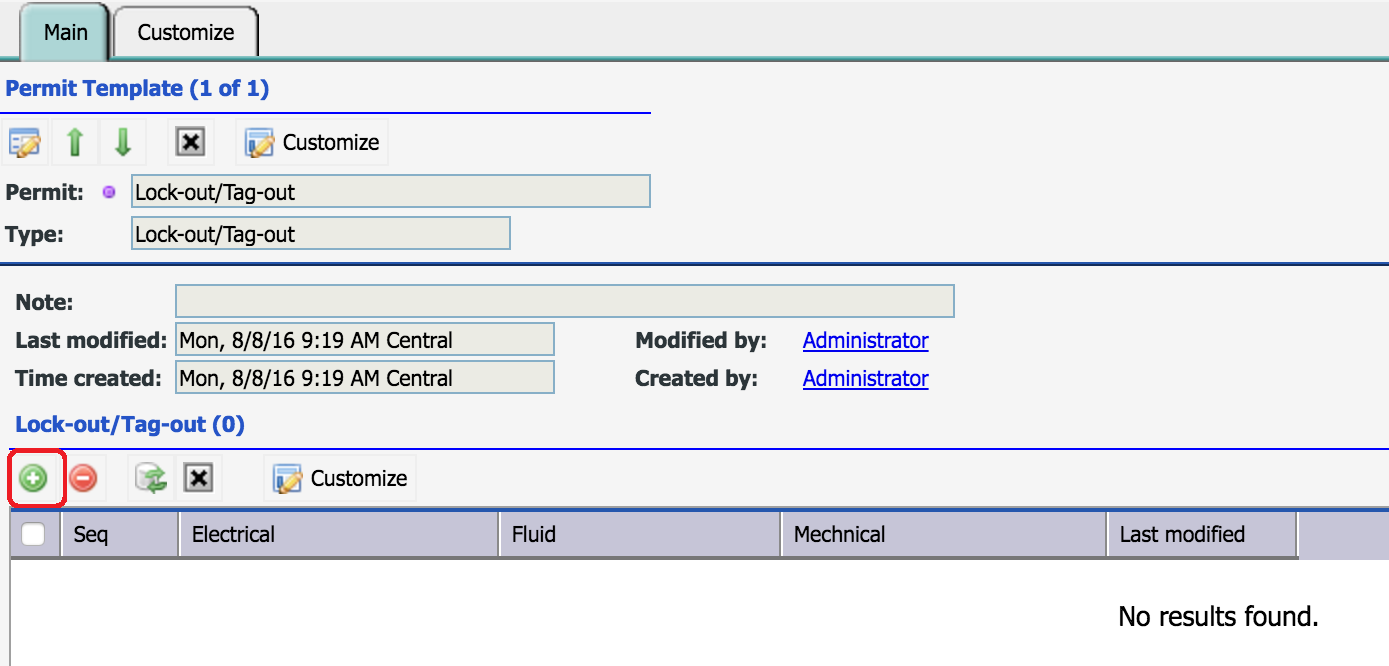

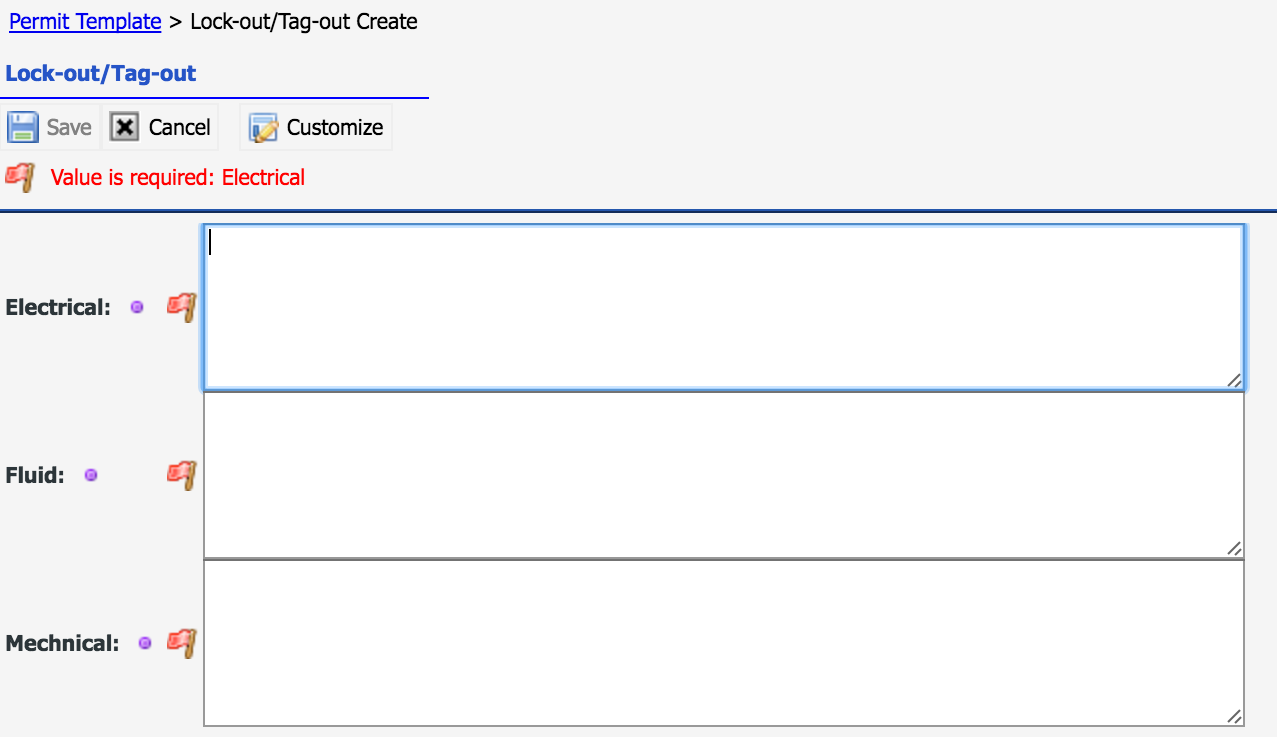

Next, add lock-out/tag-out steps for electrical, mechanical and fluid/air to the template created.

The permit created for lock-out/tag-out can be added to a work order for execution. You can also add it to a boilerplate PM Plan so the lock-out/tag-out can be added automatically for each work order created.

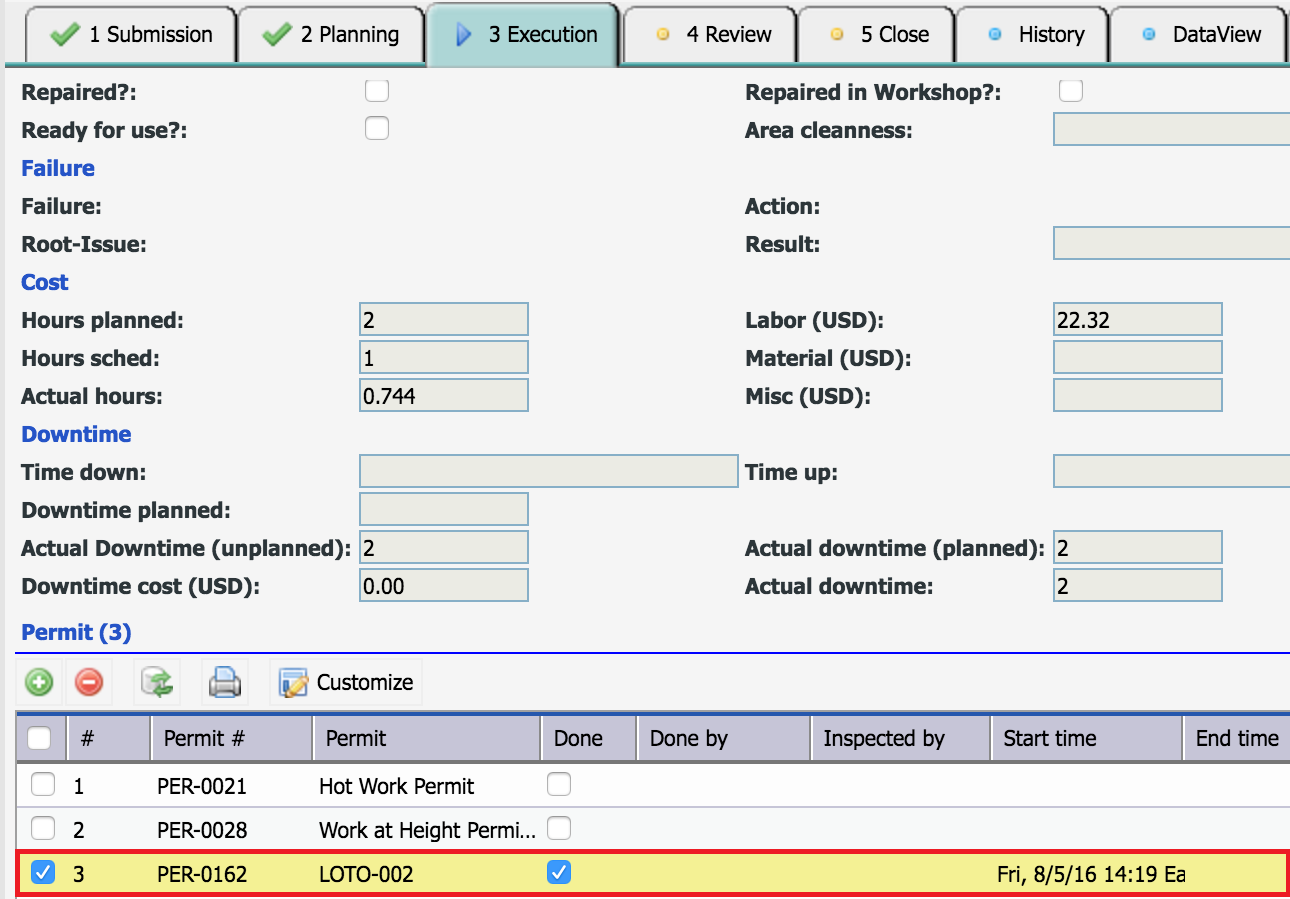

New forms are created for lock-out/tag-out execution online. Go to a work order and click a permit in the "Permit List" to open a permit to its form.

If a permit is a lock-out/tag-out one, its "TaskView" will open by default. You can switch to its "DataView". The "TaskView" is intended for staff to execute the lock-out/tag-out processes online.

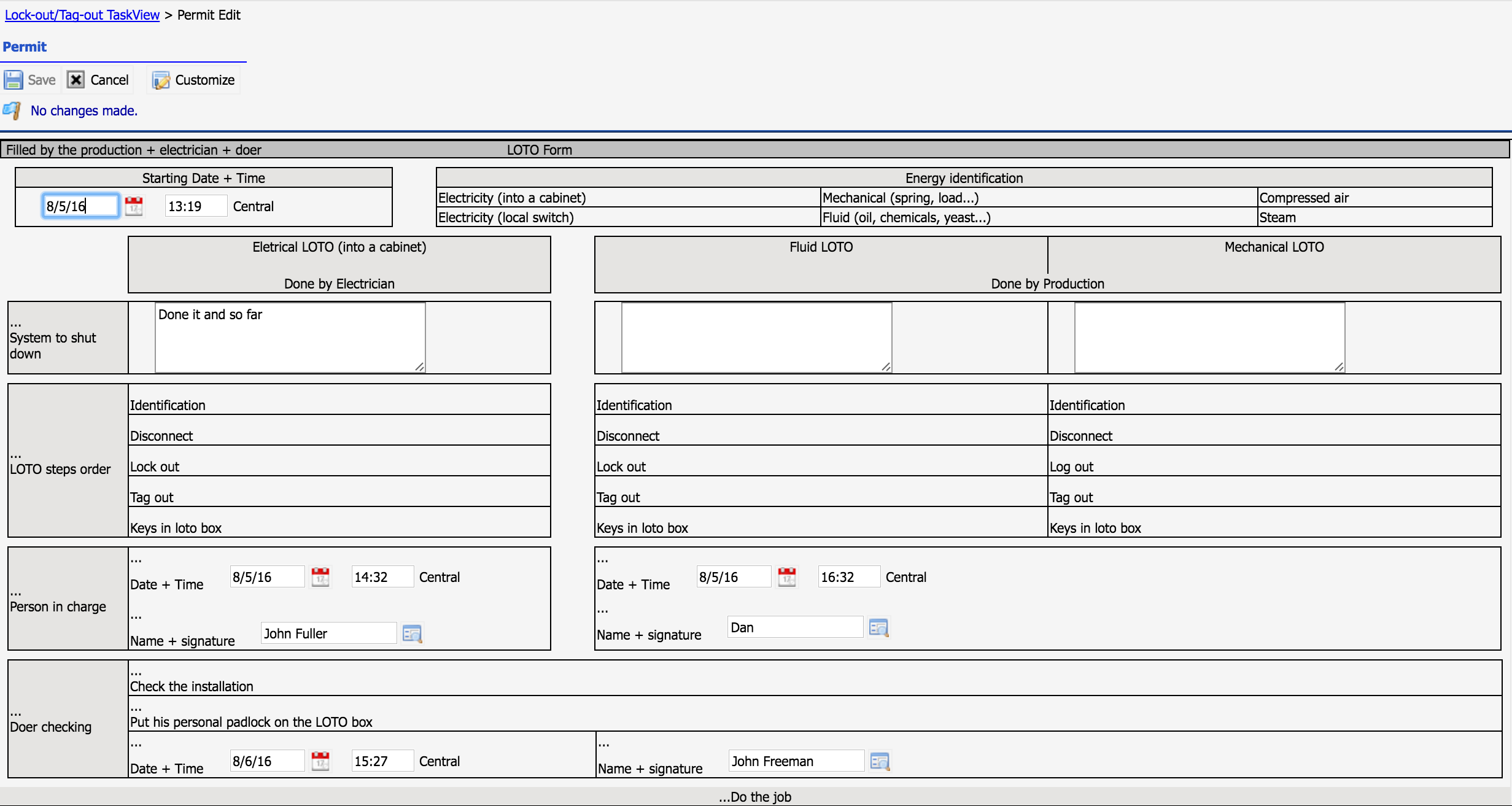

Here is the "TaskView" of lock-out/tag-out form:

Click "Edit" menu (in red-box above) to work out the lock-out/tag-out process online.

The responsible parties will perform the lock-out/tag-out processes and sign the form to complete it. The "Done" flag will be set when locks/tags are removed and signed.

See Calem Enterprise User Guide for more information about boilerplate PM Plans and adding permits to them.
